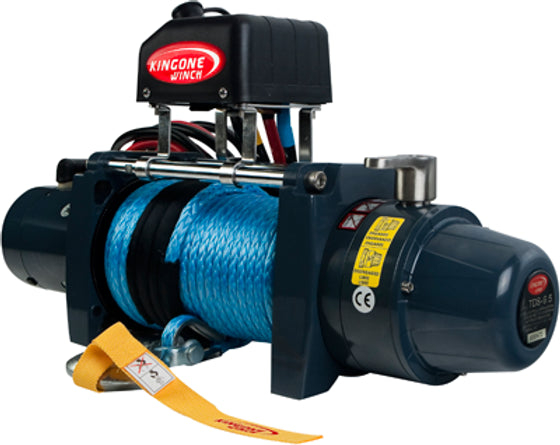

KINGONE TDS 9.5H SR
KINGONE TDS 9.5H SR
Regular price
$1,550.00 NZD
Regular price
Sale price
$1,550.00 NZD
Unit price
per
Couldn't load pickup availability
-
Heavy duty series wound motor delivers superior torque output and faster line speed.
-
3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
-
Automatic,double cone brake.
-
Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
-
Installation ,operation and maintenance with ease.
Product Detail
Specification
|
Specification
|
TDS 9.5 SR
|
|---|---|
|
Line Pull
|
4,309kgs/9,500lbs
|
|
Motor
|
12V/5.0HP 24V/3.0HP
|
|
Gear Train
|
Three stage
|
|
Gear Ratio
|
173:1
|
|
Freespooling Clutch
|
Rotating ring gear
|
|
Drum Size
|
Φ2.5"×9"(Φ63.5mm×229mm)
|
|
Wire Rope Size
|
Φ11/32"×100'(Φ8.7mm×30m)
|
|
|
|
|
Wire Rope Type
|
Aircraft A7×19
|
|
Synthetic Rope Size
|
Φ11/31"×100'(Φ9.0mm×30m)
|
Line Pull
|
Layer of Rope
|
TDS 9.5
|
|---|---|
|
1
|
9,500lbs/4,309kgs
|
|
2
|
7,800lbs/3,500kgs
|
|
3
|
6,550lbs/2,977kgs
|
|
4
|
5,700lbs/2,578kgs
|
Line Speed and AMP Draw (1st layer of rope on the drum)
|
Load
|
Line Speed
|
AMP Draw(12V)
|
AMP Draw(24V)
|
|---|---|---|---|
|
No Load
|
55.8FPM/17MPM
|
60
|
40
|
|
2,000lbs/907kgs
|
14.7FPM/4.5MPM
|
140
|
106
|
|
4,000lbs/1,814kgs
|
12.5FPM/3.8MPM
|
181
|
158
|
|
6,000lbs/2,722kgs
|
8.9FPM/2.7MPM
|
248
|
187
|
|
8,000lbs/3,650kgs
|
8.2FPM/2.5MPM
|
295
|
226
|
|
9,500lbs/4,309kgs
|
7.5FPM/2.3MPM
|
338
|
259
|
Dimensions (mm)
Standard Accessories
-

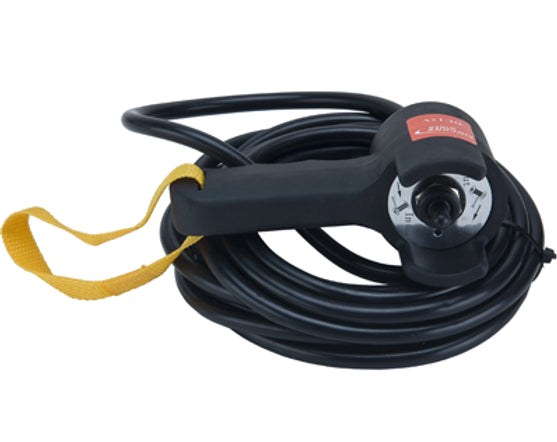

Controller TA-0906
-
Synthetic Rope With Hook
-
Hawse fairlead TA-0921
-
Control Unit TA-0909/12V TA-0909/24V
-
Mounting Hardware
-
Handsaver Strap
