ORCA 13.0 SR 13000LBS
ORCA 13.0 SR 13000LBS
Regular price
$1,895.00 NZD
Regular price
Sale price
$1,895.00 NZD
Unit price
per
Couldn't load pickup availability
-
Heavy duty series wound motor delivers superior torque output and faster line speed.
-
3 stage planetary gearbox delivers the most reliable and durable performance of winch under the worst condition.
-
Automatic,double cone brake.
-
Rotating ring gear clutch have the free spooling positioned actually for the rapid pay out of wire rope with ease.
-
Installation ,operation and maintenance with ease.
Product Detail
Specification
|
Title
|
ORCA 13.0 SR
|
|---|---|
|
Line Pull
|
5,897kgs/13,000lbs
|
|
Motor
|
12V/24V series wound
|
|
Brake
|
100% full load double cone braking
|
|
Gear Ratio
|
206:1
|
|
Wire Rope Size
|
Φ9.5mmx27M(Φ3/8"x90')
|
|
Synthetic Rope Size
|
Φ10mmx27M(Φ11/28"x90')
|
Line Pull
|
Layer of Wire Rope
|
Max Line Pull
|
|---|---|
|
1
|
13,000lbs/5,897kgs
|
|
2
|
10,500lbs/4,763kgs
|
|
3
|
9,300lbs/4,218kgs
|
|
4
|
8200lbs/3720kgs
|
Line Speed and AMP Draw (1st layer of rope on the drum)
|
Load
|
Line Speed
|
AMP Draw(12V)
|
AMP Draw(24V)
|
|---|---|---|---|
|
No Load
|
36FPM/11MPM
|
65
|
40
|
|
6,000lbs/2,722kgs
|
11.5FPM/3.5MPM
|
220
|
120
|
|
11,000lbs/4990kgs
|
5.6FPM/1.7MPM
|
340
|
170
|
|
13,000lbs/5,897kgs
|
3.7FPM/1.13MPM
|
395
|
205
|
Dimensions (mm)
Standard Accessories
-

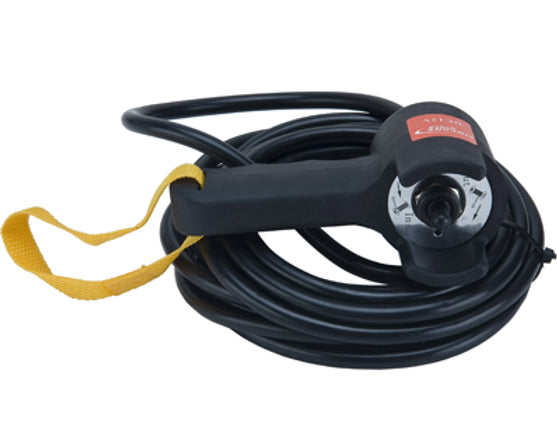

Controller
-
Wire Rope With Hook
-

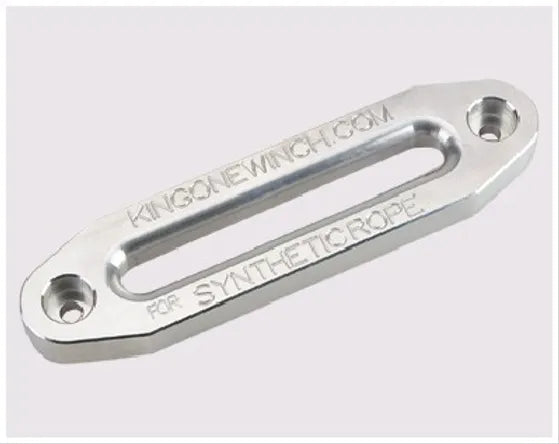

4 Way Roller Fairlead
-
Control Unit
-
Mounting Hardware
-
Handsaver Strap
